10KWh 15KWh 20KWh 51.2V 80A Solar Energy Storage System Rechargeable LifePO4 Battery with CE UL

Name: 10KWh 15KWh 20KWh 51.2V 80A Solar Energy Storage System Rechargeable LifePO4 Battery with CE UL
Brand: Zhejiang GBS Energy Co., Ltd.
Price: 2.00 USD
Availability: InStock

Наименование марки:	GBS
МОК:	1
цена:	€2,014.05-2,303.02

Подробная информация

Характер продукции

Подробная информация

Место происхождения:

Чжэцзян, Китай

Тип батареи:

ЛиФеПО4

Выходной диапазон мощности:

10 ~ 20 КВт/ч

Тип системы:

Шкаф-установленный

Напряжение и емкость аккумулятора:

51,2 В/(100xН) Ач

Выходное напряжение:

230VAC+-5%

Эффективность выпуска:

90%

Выходное напряжение переменного тока:

230VAC

Максимальное PV OCV:

145VDC

Рабочее напряжение MPPT:

60~130В постоянного тока

Максимальное течение PV поручая:

80А

Максимальный ток переменного тока:

60А

Тип контроллера:

МПРТ

Источник питания:

Солнечная панель

Выделить:

51.2V solar energy storage system

lifepo4 battery with CE UL

20KWh household energy storage

Характер продукции

10KWh 15KWh 20KWh 51.2V 80A Solar Energy Storage System Rechargeable LifePO4 Battery with CE UL

This system primarily meets the energy requirements of household users, providing intelligent and convenient integrated household energy storage solutions that seamlessly combine energy storage battery systems, photovoltaic power generation systems, and grid electricity. Ideal for urban and rural areas with high electricity costs, unstable grid operation, frequent power outages, and locations without grid coverage requiring reliable household electricity and energy security.

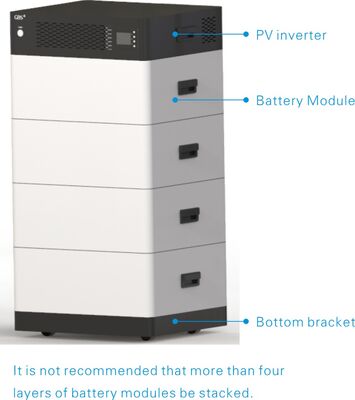

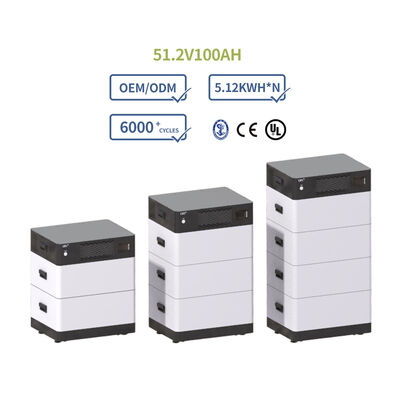

The system consists of a photovoltaic inverter and multiple battery modules that can be stacked together. The number of battery modules can be selected according to the user's power requirements. Additionally, parallel capacity expansion can be implemented between systems (supporting up to three parallel expansions) to accommodate greater power demands.

Technical Specifications

Parameter	Specification
Storage Energy	5.12KWh x N
Battery Voltage and Capacity	51.2V / (100 x N)Ah
Output Power	5KW
Output Voltage	230Vac ±5%
Output Efficiency	90%
AC Output Voltage	230Vac
Maximum PV OCV	145VDC
MPPT Working Voltage	60~130VDC
Maximum PV Charging Current	80A
Maximum AC Charging Current	60A
Working Temperature	Charge: 0°C~55°C; Discharge: -10°C~55°C
Storage Temperature	-15°C~60°C
Relative Humidity	5%~95%
Battery Module Voltage and Capacity	51.2V 100Ah
Battery Module Weight	55Kg
Battery Module Size	600 x 480 x 230mm
Inverter Weight	20Kg
Inverter Size	600 x 480 x 150mm
Bottom Bracket Weight	10Kg
Bottom Bracket Size	600 x 480 x 109mm

Company Profile

ZHEJIANG GBS ENERGY CO., LTD.

Zhejiang GBS is a national high-tech enterprise dedicated to the research, development, and manufacturing of lithium iron phosphate batteries and lithium battery integration systems. Established in July 2007, the company operates a digital demonstration factory in Zhejiang province and currently maintains two production bases with an annual production capacity of 2 GWh.

The company's long-term purpose is "innovation to improve quality, quality awakens the concept," pursuing "ideas to improve the environment, and the environment benefits mankind." GBS comprehensively promotes the construction of the corporate "Goose Team" culture and has established a "lithium battery research and development center" and "academician workstation" for professional development of lithium battery system products.

The company has obtained authorization for more than 70 patents covering inventions, utility models, and appearances. It has achieved UL, TUV, CE, IEC, and other international certifications and is included in the "Automotive Power Battery Industry Specification Conditions" enterprise catalog. GBS has passed explosion-proof safety certification for mining products, TLC certification for telecommunication products, and CCS certification for marine products, becoming one of China's first lithium battery manufacturers to hold qualification certificates in electric vehicles, mining, telecommunication, and marine applications.
